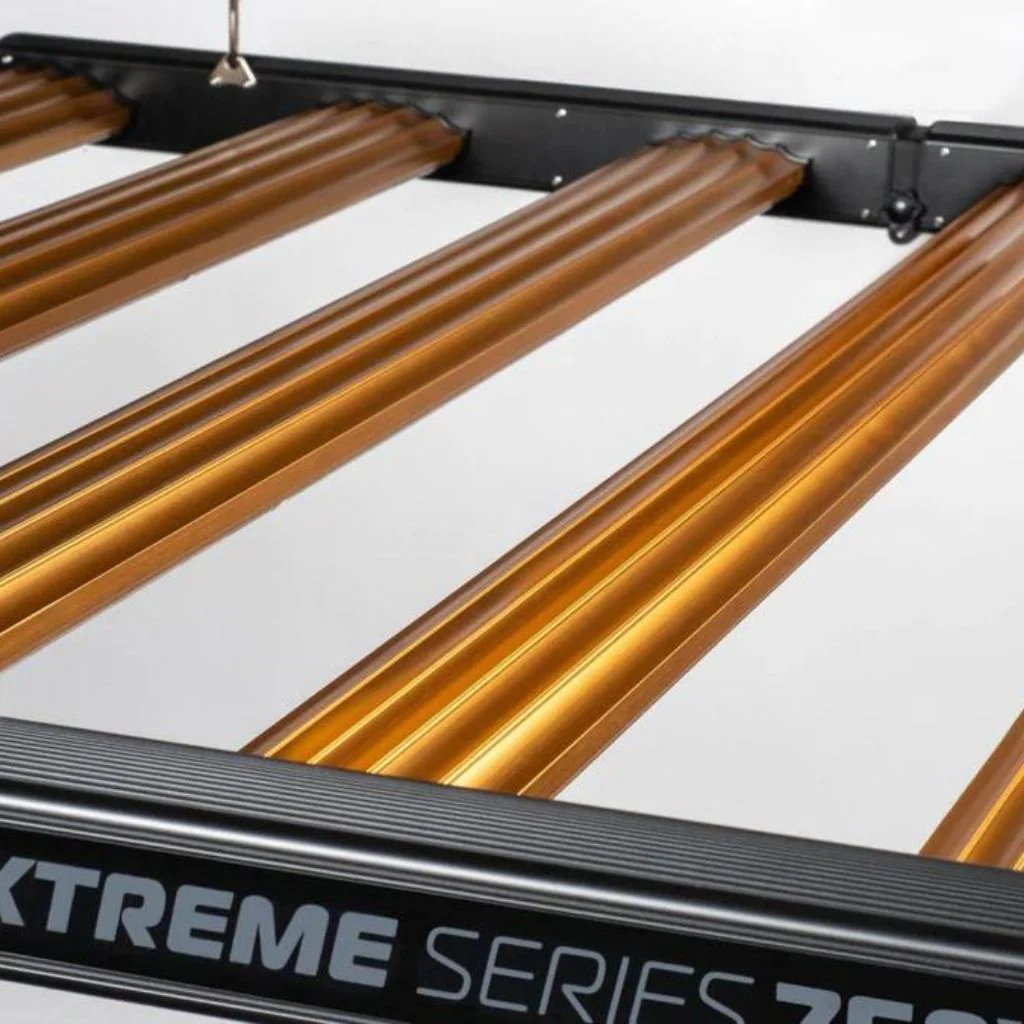

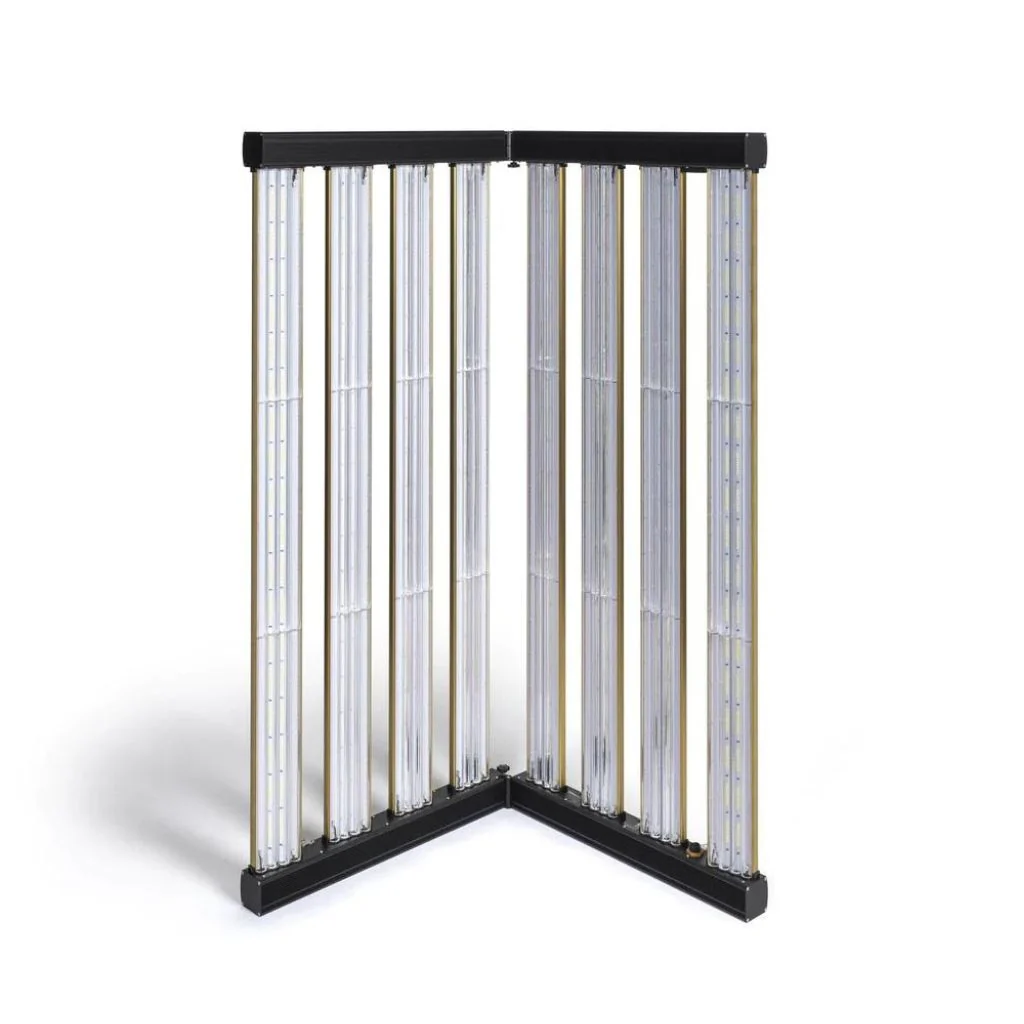

Dimlux Xtreme Series 1050W MKII LED

Revolutionizing Horticultural Lighting

Twelve years ago, Dimlux introduced the first-ever groundbreaking remote-controlled HPS ballast in combination with the Maxi Controller—the Dimlux Expert Series. Today, Dimlux takes innovation to the next level with the Dimlux Xtreme Series LED—the smartest, most efficient, and most powerful grow light on the market.

With cutting-edge patented technology, advances in LED performance, and an optimized thermal design, the Dimlux Xtreme Series LED sets a new standard in horticultural lighting. Its adjustable PhytoVegSpec® Indoor grow spectrum offers full control over both light quality (spectral flexibility) and quantity (intensity and DLI), ensuring uniform spread and deep canopy penetration.

Unparalleled Performance & Efficiency

The Dimlux Xtreme Series LED delivers ultra-high levels of PPFD, evenly covering 1.5m x 1.5m – 2m x 2m grow areas with a full-spectrum output, guaranteeing consistently high-quality and high-yield indoor crops.

It also features dimming capabilities without efficiency loss, allowing you to program the spectrum and output power based on the time of day and crop growth stage.

Patented Ionization Technology

The integrated negative ionizer with cold plasma technology (ozone-free) significantly reduces airborne pathogens, resulting in healthier crops and improved yield quality.

Specifications

Light Source	1050W LED

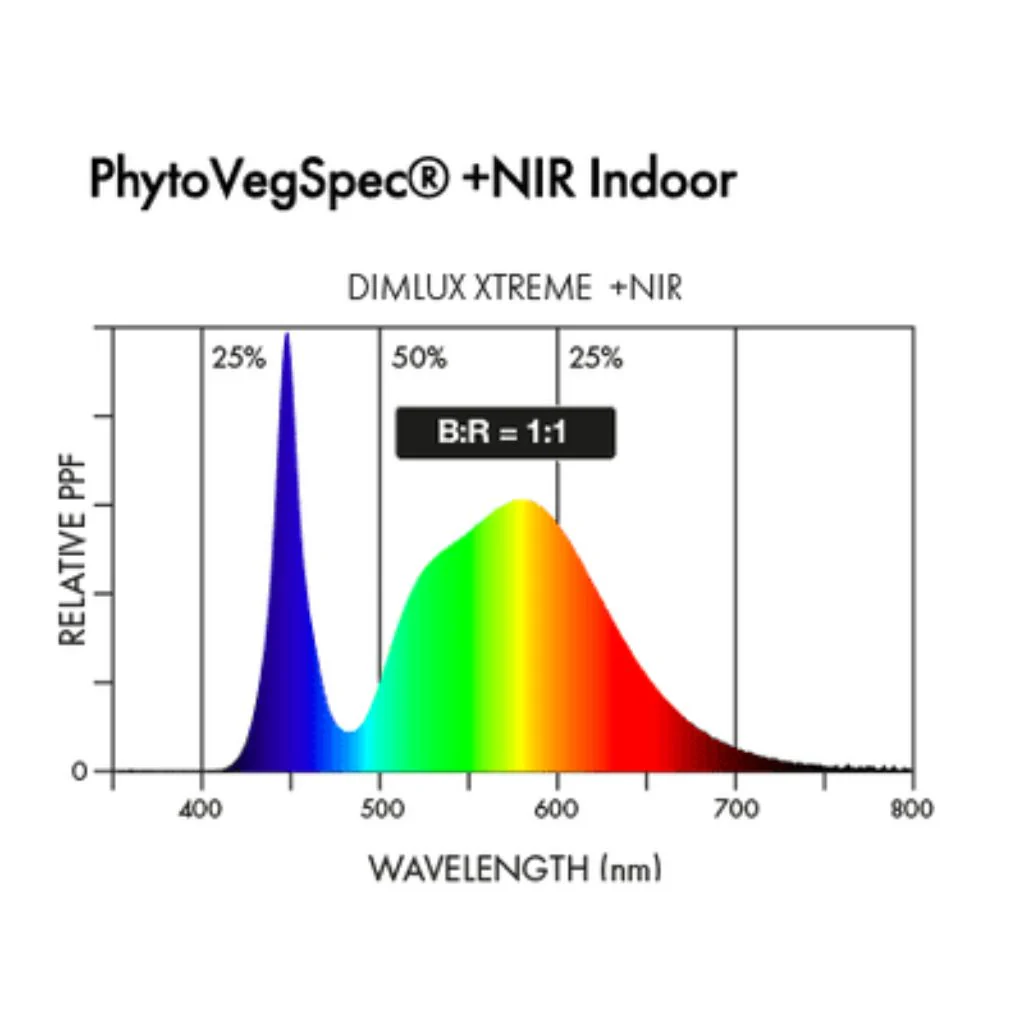

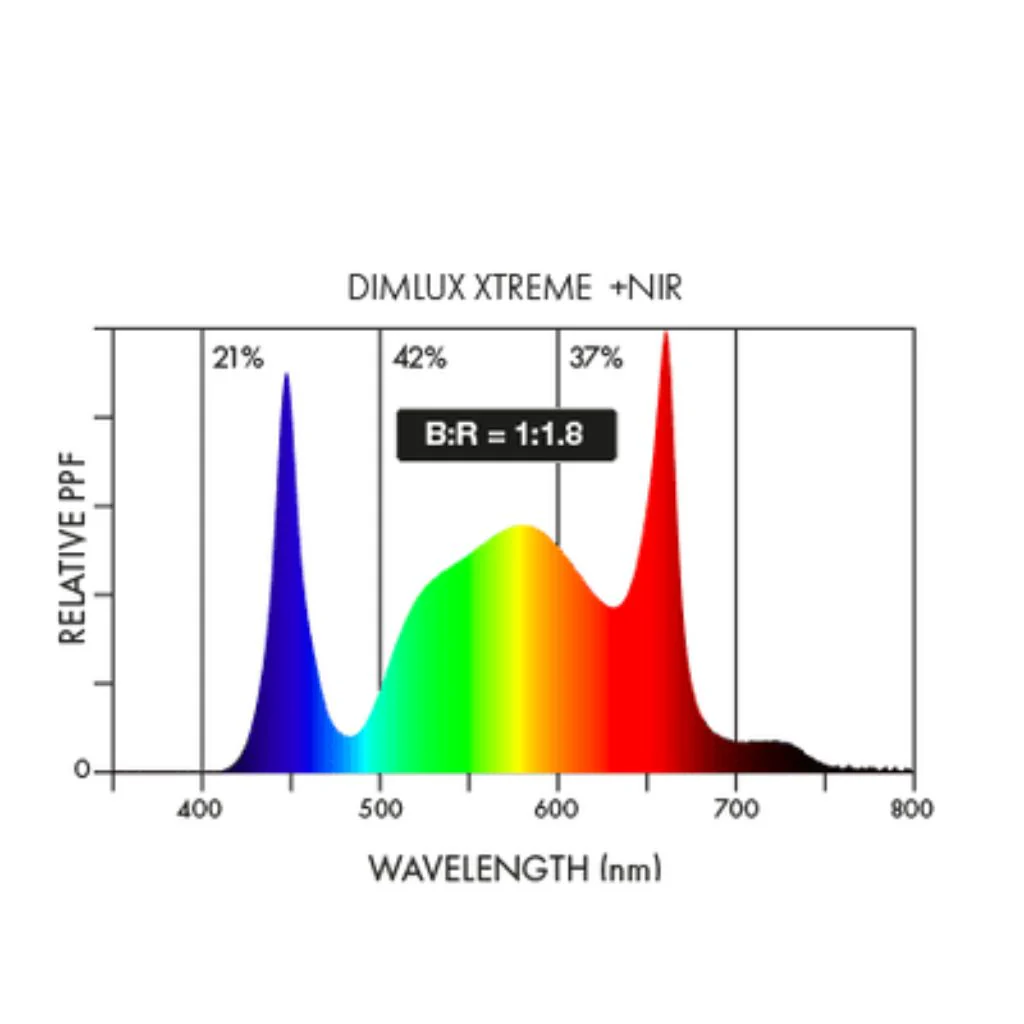

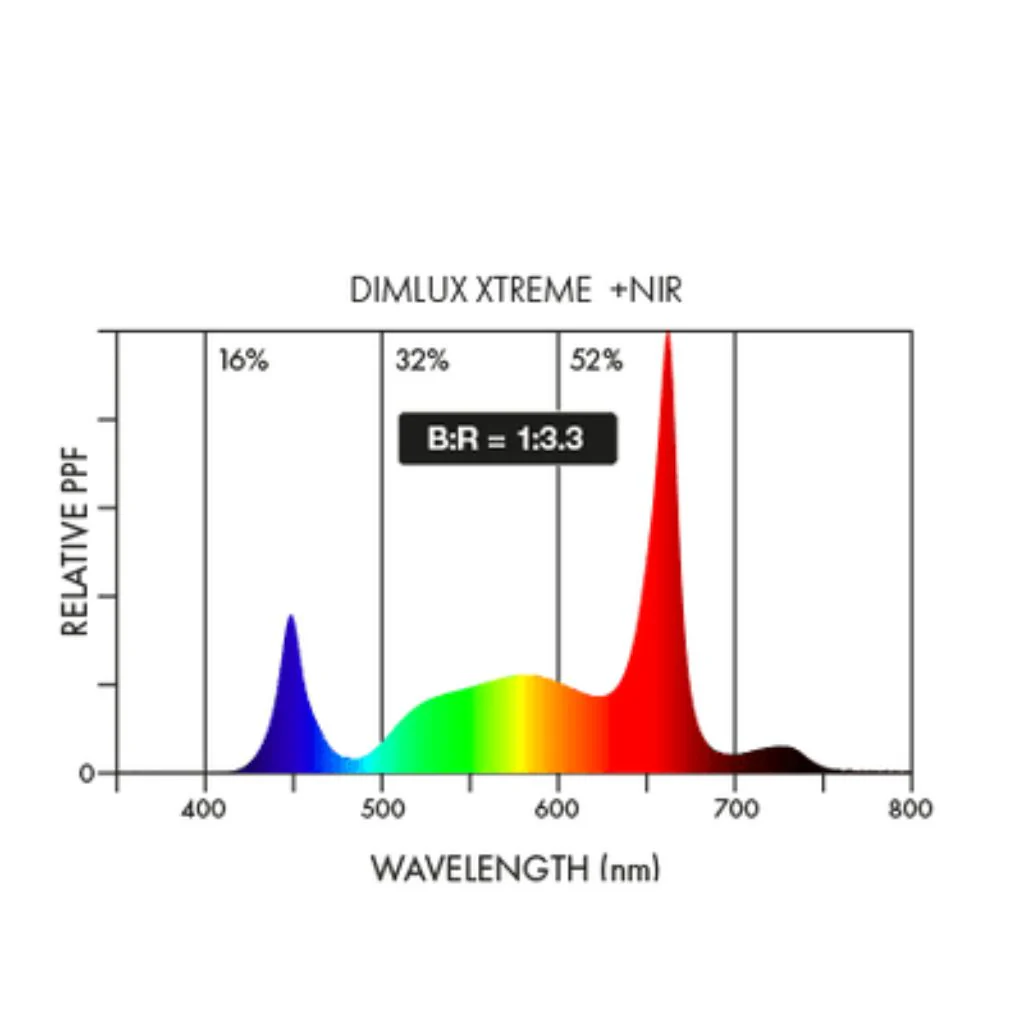

Spectrum	Adjustable PhytoVegSpec® Indoor + NIR
Light Output (PPF)	3604 μmol/s
Light Output Total (PPF 350-800nm)	3822 μmol/s
PAR Photon Efficacy (400-700nm)	3.3 μmol/J @ 230-240V AC
Total Photon Efficacy (350-800nm)	3.5 μmol/J @ 230-240V AC
AC Input Power	1092W
AC Input Voltage	208-400V AC, 50/60Hz
Beam Angle	90° x 120°
Optics	Patented Deep Penetration Ultra High Transmittance Lens
Auxiliary Light	Patented Light Pipe Multi Color 65k
Ionizer	Patented Negative Ions & Cold Plasma
Ozone	Non Detectable <0.05PPM
Proximity Sensor	Doppler Radar
Minimum Mounting Height Above Canopy	70 cm / 28”
Thermal Management	Passive
Max. Ambient Temperature	35°C / 95°F
Control	By Smart Remote, Maxi Controller or Internal Controller
Smartports (3x)	Interlink, Plant Temperature Sensor, Light Sensor

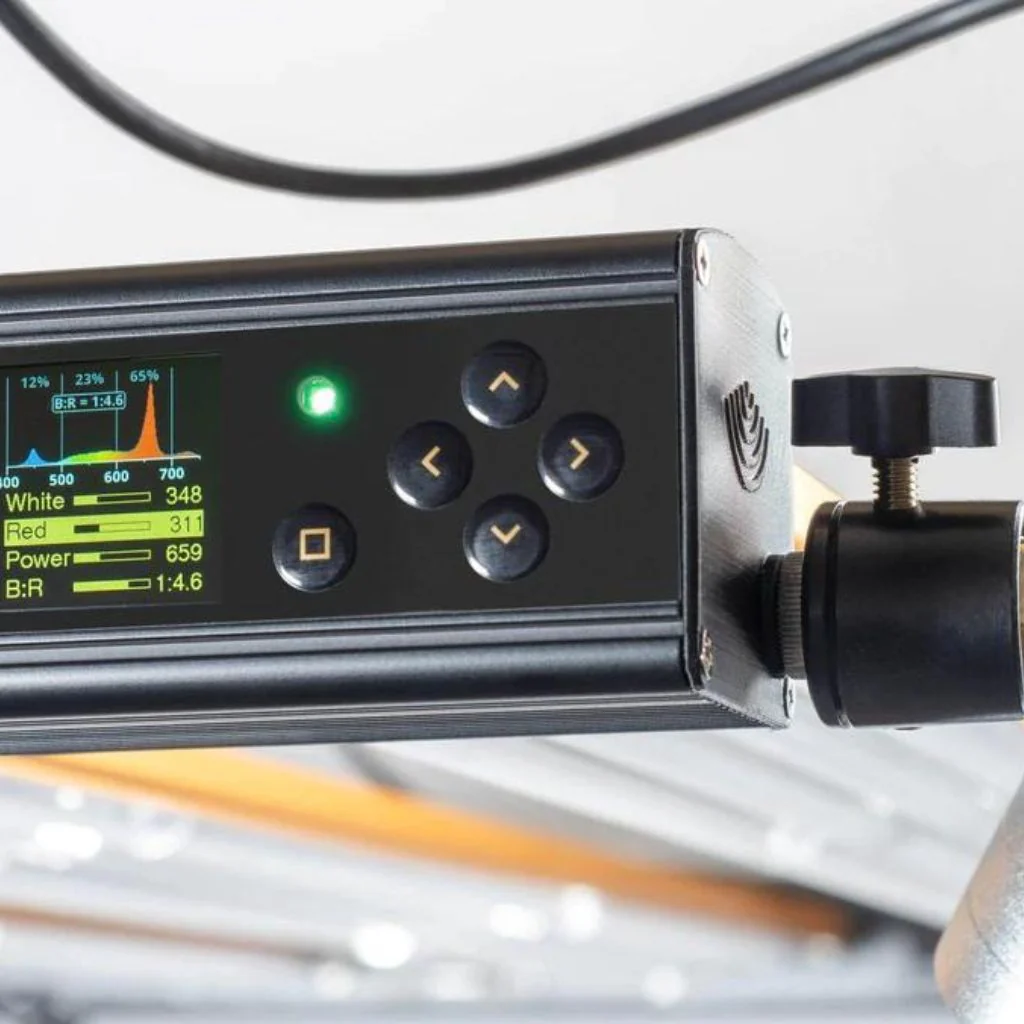

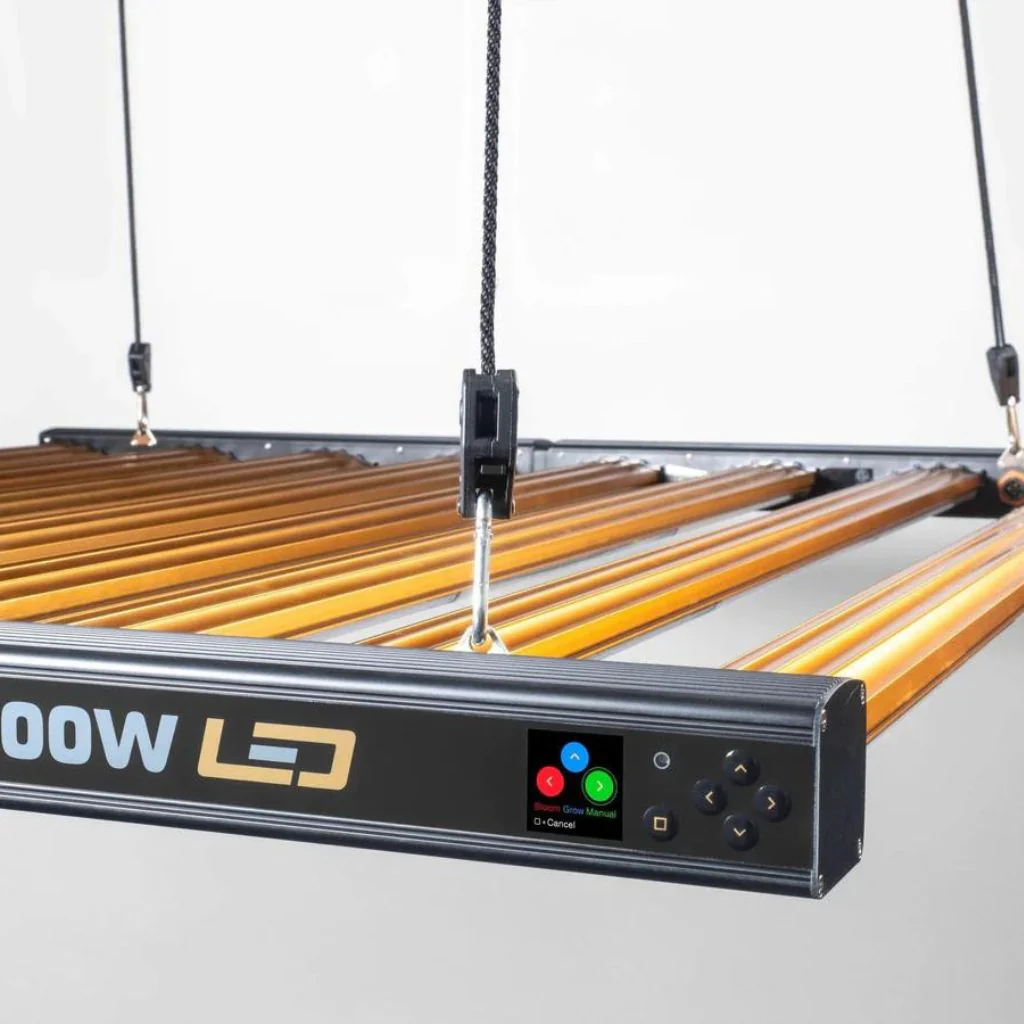

Display For Spectrum and GUI	1.54” 65k Color IPS
Total Harmonic Distortion (THD)	< 20%
Lifetime L90	> 50,000h
IP Rating	IP65
Certifications	CE, UL 8800, UL 1598 Wet Location, DLC
Dimensions (LxWxH)	46.9" x 44.25" x 2.2"
Weight	20.8 kg / 45.8 lbs
Warranty	5 Year Standard
