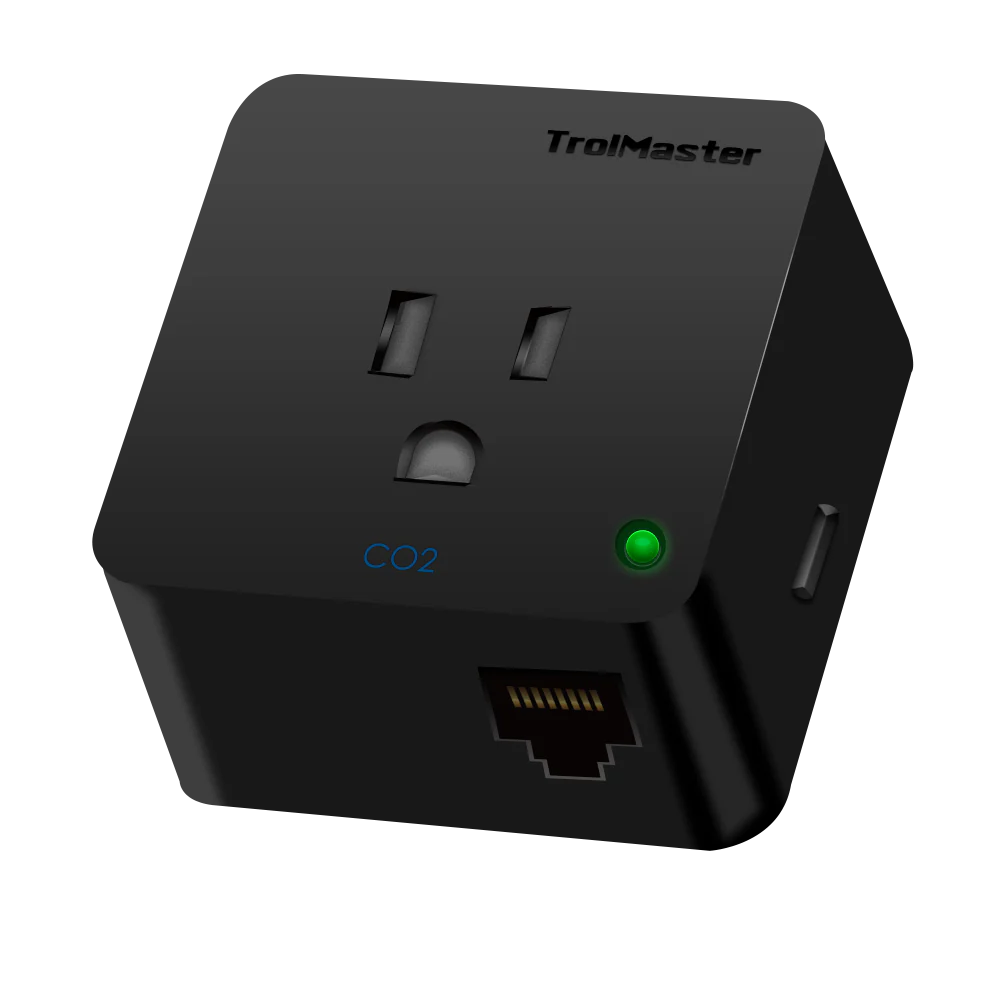

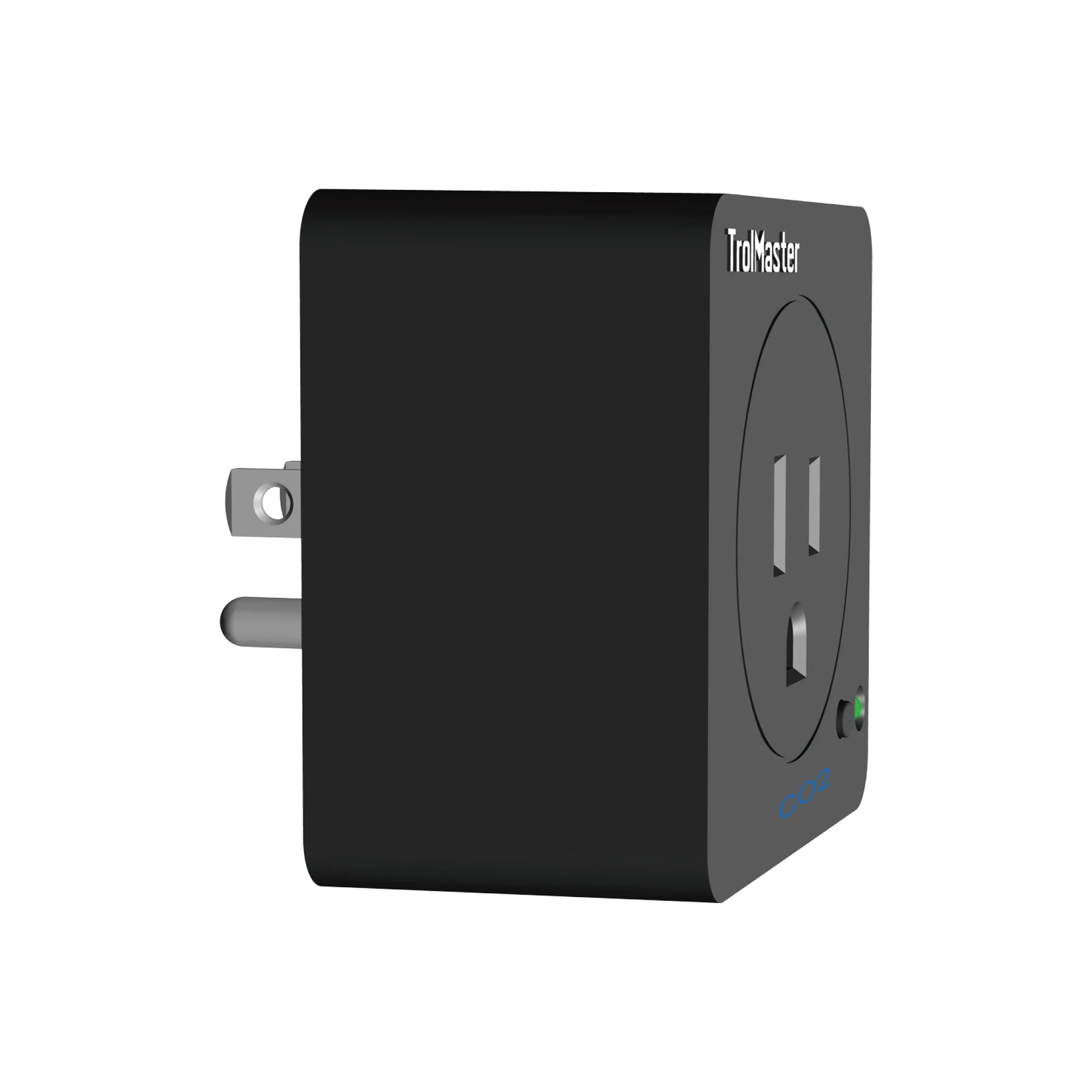

TrolMaster CO2 Device Station (DSC-2)

Introducing the TrolMaster DSC-1 CO₂ Device Station, a vital component for integrating and controlling supplemental CO₂ devices within the Hydro-X Environmental Control System. This module enables seamless management of CO₂ levels, ensuring optimal conditions for plant growth.

Key Features:

• Universal Compatibility: Designed to control standard supplemental CO₂ devices or CO₂ exhaust controls operating on 100-240 VAC, 50/60 Hz, up to 10 amps.

• LED Status Indicators: Provides clear visual feedback on operational status:

  • Blinking Green (Fast): Module not addressed or poor connection.
  • Blinking Green (Slow): Module addressed and connected, currently OFF.
  • Solid Green: Module addressed, connected, and currently ON.
  • Blinking Red: Module overloaded; reset by unplugging.

• Manual Override: Allows users to manually turn the module ON or OFF by pressing and holding the button on the DSC-1.

Specifications:

Specification	Details
Input Voltage	100-240 VAC, 50/60 Hz
Output Current	Up to 10A
Operating Temperature	32°F to 122°F (0°C to 50°C)
Operating Humidity	Up to 90%
Package Dimensions	85mm (L) x 80mm (W) x 90mm (H)
Gross Weight	0.34 kg

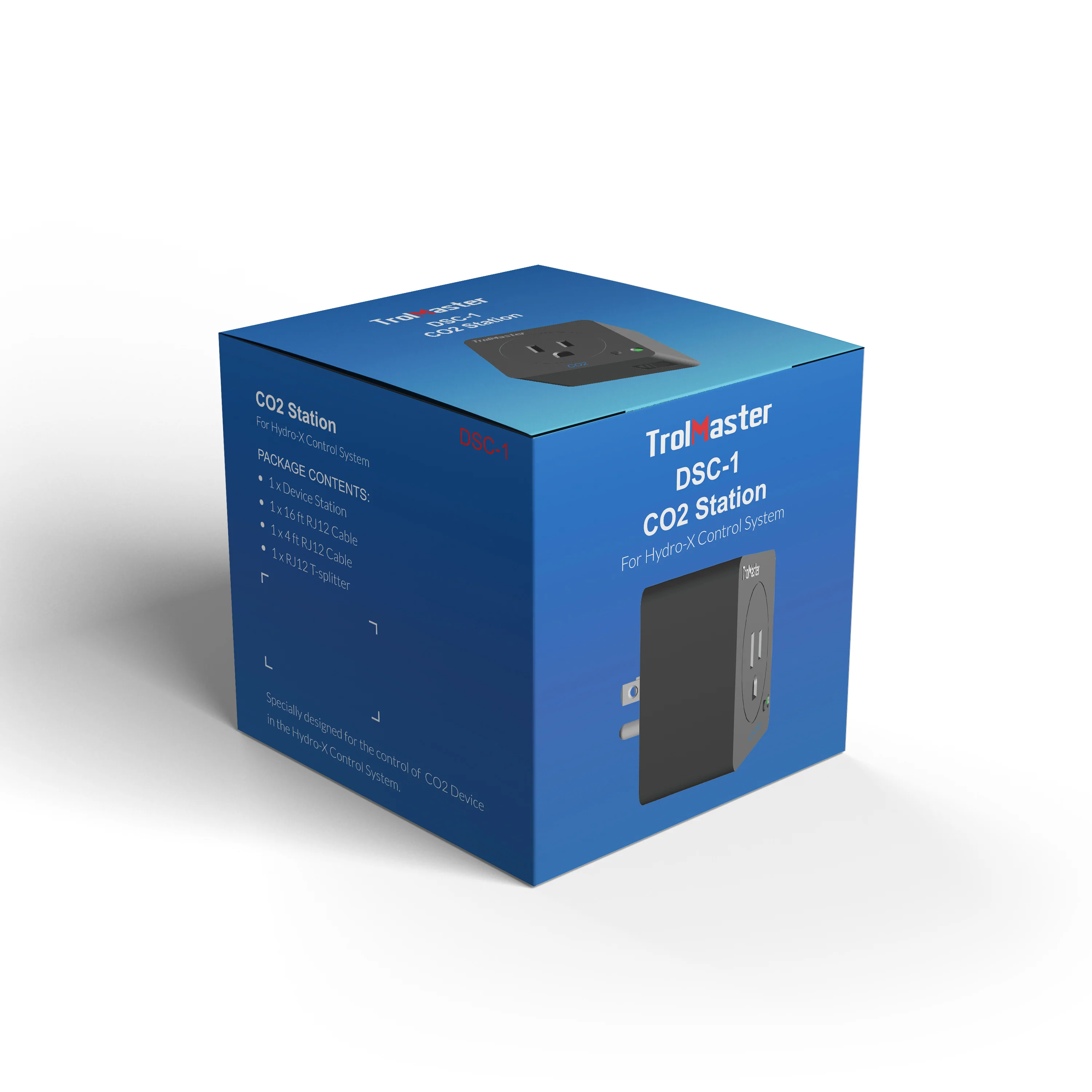

Package Contents:

• 1 x DSC-1 CO₂ Device Station
• 1 x 16 ft RJ12 Cable
• 1 x 4 ft RJ12 Cable
• 1 x RJ12 T-Splitter

The TrolMaster DSC-1 CO₂ Device Station is an essential tool for growers seeking precise control over CO₂ levels, enhancing plant health and productivity.
