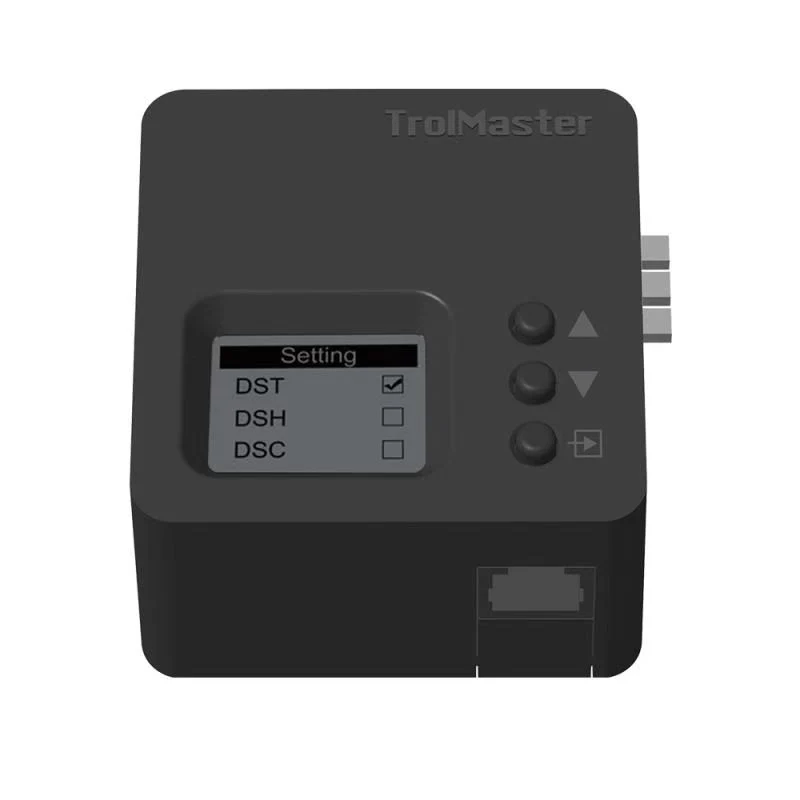

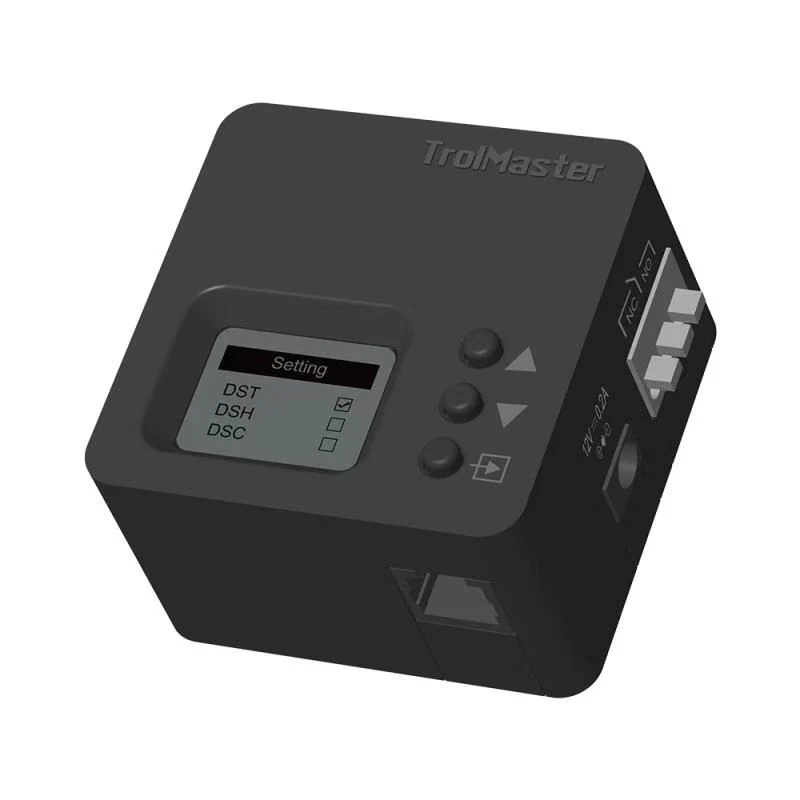

TrolMaster Dry Contact Station (DSD-1)

Introducing the TrolMaster DSD-1 Dry Contact Station, a versatile module designed to integrate seamlessly with the Hydro-X and Aqua-X Environmental Control Systems. This device enables users to connect and control a wide range of equipment that requires dry contact closure for activation, offering flexibility and precision in environmental management.

Key Features:

• Universal Compatibility: The DSD-1 connects to the "devices" line on the Hydro-X or Aqua-X systems, allowing control over various devices such as:

  • Lighting contactors
  • Light deprivation curtains
  • Pump contactors
  • Temperature and humidity control devices
  • CO₂ devices

• Manual Override: By pressing and holding the top button on the DSD-1, users can manually turn the module ON or OFF, providing direct control when needed.

• Plug & Play Setup: Designed for easy installation, the DSD-1 offers a straightforward setup process, ensuring a hassle-free experience.

Specifications:

Specification	Details
Input Voltage	100–240 VAC, 50/60 Hz
Output Current	6A
Dry Contact Output	30 VDC/250 VAC, 6A
Operating Temperature	32°F to 122°F (0°C to 50°C)
Operating Humidity	Up to 90%
Package Dimensions	85mm (L) x 80mm (W) x 90mm (H)
Gross Weight	0.34 kg

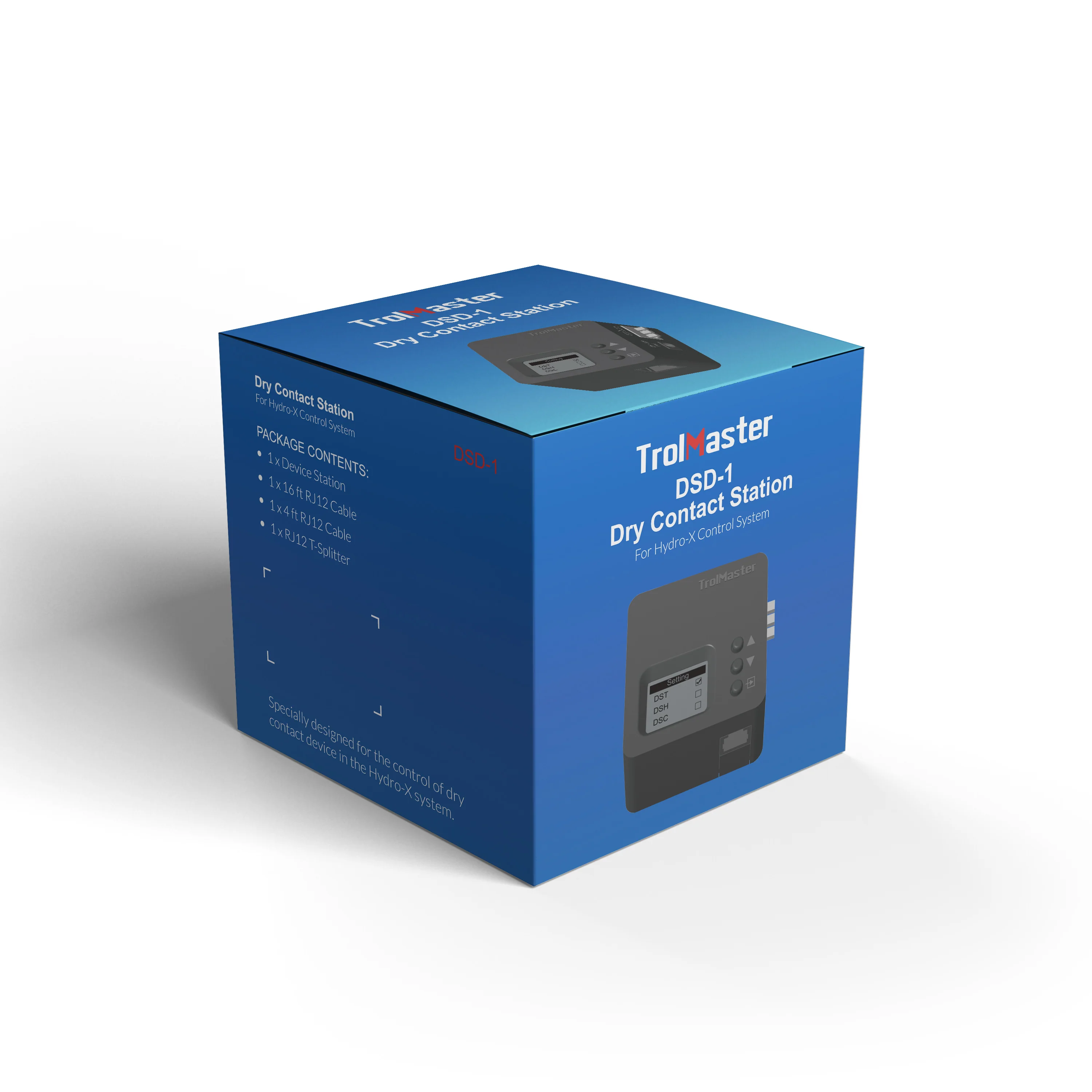

Package Contents:

• 1 x Dry Contact Station DSD-1
• 1 x 16 ft RJ12 Cable
• 1 x 4 ft RJ12 Cable
• 1 x RJ12 T-Splitter

The TrolMaster DSD-1 Dry Contact Station is an essential tool for growers seeking precise control over various environmental factors, enhancing plant health and productivity.
